Pneumatic Diaphragm Valve Description

Sanitary Tri-Clamp Diaphragm Valve is a tri-clover clamp connected diaphragm valve. Generally, our sanitary diaphragm valves are forged valve bodies and materials in stainless steel T304 and T316L. We offer sanitary tri-clamp diaphragm valve from 1″ to 3″, it can be manual or pneumatic operated. Adamant Valves supplies different sanitary valves to meet various needs for hygienic industries such as Food, Brewery, Beverage, Dairy, Pharmaceutical and etc.

Pneumatic Diaphragm Valve Application

EV-4PC series sanitary tri-clamp diaphragm valve is a pneumatic type sanitary diaphragm valve with tri-clamp/tri-clamp ends, which is widely used in food, beverage, dairy, brewing, pharmaceutical industries, etc. It is excellent for flow control as well as for open/close duties.

Pneumatic Diaphragm Valve Specification

Options of Pneumatic Diaphragm Valve

End connection can be butt-welded, sanitary tri-clamp, thread.

Diaphragm can be pure EPDM or EPDM+PTFE

Inside surface treatment can be Ra 16μin (0.4μm).

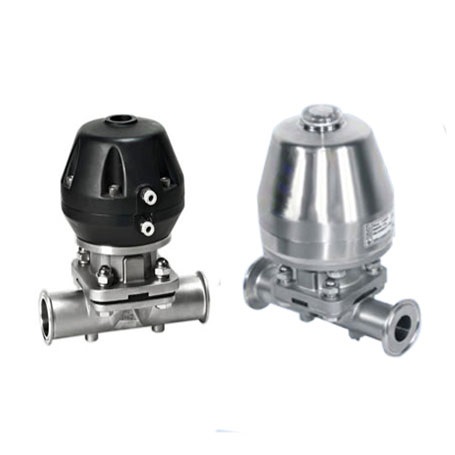

The diaphragm valves can be with plastic pneumatic actuators or pure stainless steel actuators as below photos show, actuators can be NC/NO/AA operated for choose from

•  NC operated: normally closed (fail closed)—air to open, spring to close
•  NO operated: normally open (fail open)—air to close, spring to open
•  AA operated: double acting—air to open, air to close

Valve body can be T type, U type or tank bottom type as below photo shows for choose from:

Technical Parameters of Pneumatic Diaphragm Valve
